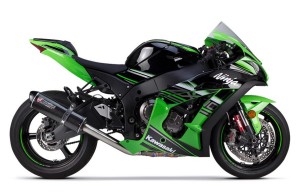

2016 Ninja ZX10R

ENGINE

Engine type

Liquid-cooled, 4-stroke In-Line Four

Displacement

998 cm3

Bore x stroke

76.0 x 55.0 mm

Compression ratio

13.0:1

Valve/Induction system

DOHC, 16 valves

Fuel system

Fuel injection: ø47 mm x 4 with dual injection

Ignition

Digital

Starting

Electric

Lubrication

Forced lubrication, wet sump with oil cooler

FRAME

Frame type

Twin spar, cast aluminium

Rake/Trail

25o / 107 mm

Wheel travel, front

120 mm

Wheel travel, rear

114 mm

Tyre, front

120/70ZR17M/C (58W)

Tyre, rear

190/55ZR17M/C (75W)

Steering angle, left / right

27o / 27o

PERFORMANCE

Maximum power

147.1 kW {200 PS} / 13,000 min

Maximum power with RAM Air

154.4 kW {210 PS} / 13,000 min

Fuel Consumption

5,9 l/100 km

CO2 Emissions

162 g/km

Maximum torque

113.5 N.m {11.6 kgf.m} / 11,500 min

TRANSMISSION

Transmission

6-speed, return

Final Drive

Chain

Primary reduction ratio

1.681 (79/47)

Gear ratios: 1st

2.600 (39/15)

Gear ratios: 2nd

2.214 (31/14)

Gear ratios: 3rd

1.944 (35/18)

Gear ratios: 4th

1.722 (31/18)

Gear ratios: 5th

1.550 (31/20)

Gear ratios: 6th

1.391 (32/23)

Clutch

Wet multi-disc, manual

BRAKES

Brakes, front

Dual semi-floating ø330 mm discs. Caliper: Dual radial-mount, opposed 4-piston

Brakes, rear

Single ø220 mm disc. Caliper: Single-bore pin-slide, aluminium piston

SUSPENSION

Suspension, front

ø43 mm inverted Balance Free Front Fork with external compression chamber, compression and rebound damping and spring preload adjustability, and top-out springs

Suspension, rear

Horizontal Back-link with BFRC lite gascharged shock, piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring

DIMENSIONS

Dimensions (L x W x H)

2,090 x 740 x 1,145 mm

Wheelbase

1,440 mm

Ground Clearance

145 mm

Fuel capacity

17 litres

Seat height

835 mm

Curb Mass

206 kg
